Tomato paste mixing tank facility for factory using

Tomato paste mixing tank facility for factory using

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: shanghai
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2011-01-31
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  china
  • Brand Name:  AIDEKE
  • Model Number:  adk

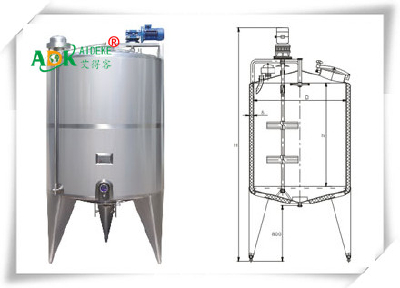

Tomato paste mixing tank facility for factory using

1. Application scope

Used in food and beverage industry equipment, cleaning production equipment.

2. Capacity

300L to 2000L

3. Equipment describe

Made of SUS304 stainless steel, totally consist with food safety requirements.

Controlled by PLC and equip with automatic cleaning system.

4. Main equipment

Hot water tank, acid tank, alkali tank, auxiliary material tank, heat exchanger, temperature control, steam trap, control valve, diaphragm pump, pneumatic valve, liquid level control, metering system, automatic electric control system

5. Basic parameter

Name

Stainless steel storage tank, mixing tank, buffer tank

Material

SUS304 stainless steel

Mixing method

Flat leaf, inclined blade, cut leaf, curved blade, can be customized according to customer's specific situation

Control

Manual / automatic, flow can be set and displayed

Temperature control

Automatic control, multi-layer structure, automatic control of cold and hot water

DO control

Using imported electrode, speed can be controlled

Feeding control

PID fully automatic control, automatic measurement

Foam control

Full automatic PID monitoring and alarm, automatic adding foam agent

Pressure control

Manual / automatic

Mixing control

High performance slurry, plasma, AC motor, frequency converter

Installation

Vertical and horizontal optional



Volume

300L

400L

500L

600L

800L

1000L

1500L

2000L

Diameter

mm

Φ800

Φ800

Φ900

Φ1000

Φ1000

Φ1000

Φ1200

Φ1300

Height

mm

600

800

800

800

1000

1220

1220

1500

Power

kw

0.55

0.55

0.75

0.75

0.75

0.75

1.5

2.2

Rotational Speed

36 Rev / min

Pressure

0.09Mpa

Temperature

100

Accessory

Sanitary manhole, cleaning ball, safety valve, pressure gauge





  • Place of Origin:  china
  • Brand Name:  AIDEKE
  • Model Number:  adk
